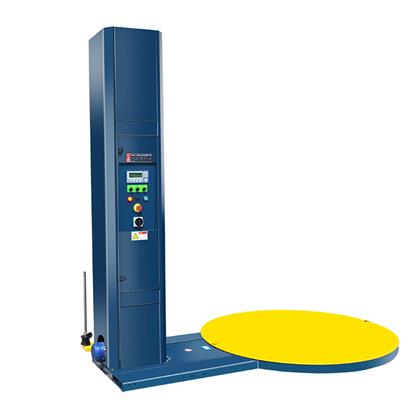

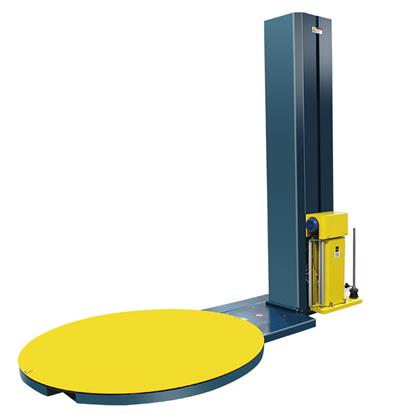

Automatic film winding machine
Model and product name:Yf-2000b rotary table type stretching film winding machine (pre stretching type)
Supply voltage:1P,AC220V/110V,50Hz/60Hz
Power:About 1.25kw
Film stretching parts:The tightness of the film can be automatically adjusted through frequency conversion adjustment
Rotary speed:0~10r/min
Rotary table diameter (mm):Φ1500mm / 1650mm / 1800mm (customizable)
Column height (mm):H = 2400mm (customizable)
Packaging:LLDPE stretched film, width ≤ 500mm, outer diameter ≤ 280mm
Bearing range:Standard type ≤ 1.5T, increased motor type ≤ 2T
Maximum packaging height:Column height minus 400mm
Machine weight:650~750kg
Optional additional:steep hill
Working noise:≤75dB (A)
Environment condition:Relative humidity ≤ 90%, temperature - 10 ℃ ~ 40 ℃
Lubricating material:General grease No. 0
Overall dimension:2600*1500*2550mm
Film specification:Height 100 ~ 500mm, thickness 17-25um (standard)
Supply voltage:1P,AC220V/110V,50Hz/60Hz
Power:About 1.25kw
Film stretching parts:The tightness of the film can be automatically adjusted through frequency conversion adjustment
Rotary speed:0~10r/min
Rotary table diameter (mm):Φ1500mm / 1650mm / 1800mm (customizable)
Column height (mm):H = 2400mm (customizable)
Packaging:LLDPE stretched film, width ≤ 500mm, outer diameter ≤ 280mm
Bearing range:Standard type ≤ 1.5T, increased motor type ≤ 2T
Maximum packaging height:Column height minus 400mm
Machine weight:650~750kg
Optional additional:steep hill
Working noise:≤75dB (A)
Environment condition:Relative humidity ≤ 90%, temperature - 10 ℃ ~ 40 ℃
Lubricating material:General grease No. 0
Overall dimension:2600*1500*2550mm
Film specification:Height 100 ~ 500mm, thickness 17-25um (standard)
Stretch ratio:100%~250%
Model and product name:Yf-2000b rotary table type stretching film winding machine (pre stretching type)
Supply voltage:1P,AC220V/110V,50Hz/60Hz
Power:About 1.25kw
Film stretching parts:The tightness of the film can be automatically adjusted through frequency conversion adjustment
Rotary speed:0~10r/min
Rotary table diameter (mm):Φ1500mm / 1650mm / 1800mm (customizable)
Column height (mm):H = 2400mm (customizable)
Packaging:LLDPE stretched film, width ≤ 500mm, outer diameter ≤ 280mm
Bearing range:Standard type ≤ 1.5T, increased motor type ≤ 2T
Maximum packaging height:Column height minus 400mm
Machine weight:650~750kg
Optional additional:steep hill
Working noise:≤75dB (A)
Environment condition:Relative humidity ≤ 90%, temperature - 10 ℃ ~ 40 ℃
Lubricating material:General grease No.0
Overall dimension:2600*1500*2550mm
Film specification:Height 100 ~ 500mm, thickness 17-25um (standard)
Stretch ratio:100%~250%
