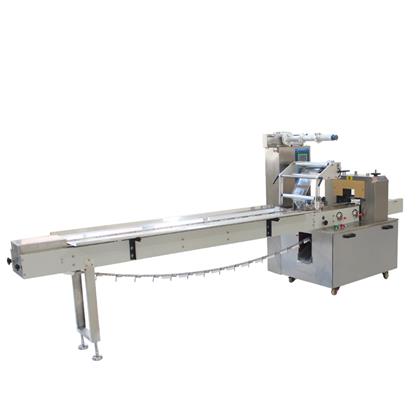

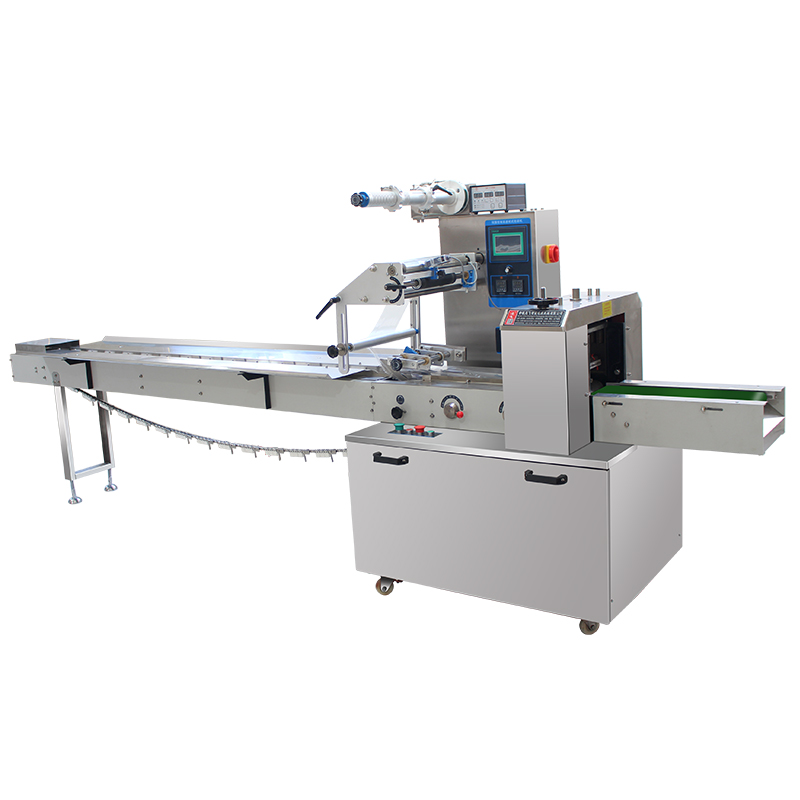

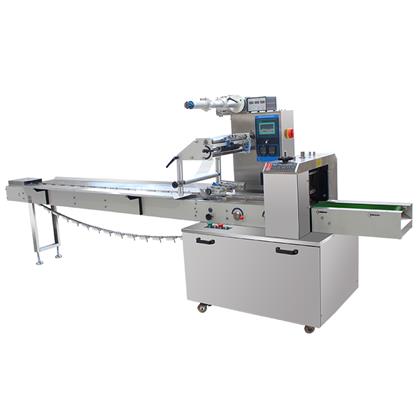

Automatic pillow (horizontal) packaging machine
| Model | YF-100 |
YF-300 |
|
Packaging speed |
20-200 packs / min |
30-200 packs / min |
|
Bag Size |
(L)70-260(W)30-90(H)3-35MM |
(L)75-240(W)30-140(H)3-50MM |
|
Packaging film width |
80-220MM |
60-300MM |
|
Packaging |
OPP, CPP, Pt / TE, Kop / CPP, etc |
OPP, CPP, Pt / TE, Kop / CPP, etc |
|
Overall dimension |
(L)4100 × (W)1000 × (H)1500m |
(L)4000 × (W)950 × (H)1600mm |
|
heating power |
3.5KW |
3.5KW |
|
Motor power |
0.55+0.75KW |
0.55+0.75KW |
|
Total power |
4.8KW |
4.8KW |
|
Machine weight |
550KG |
600KG |
|
Optional configuration |
Code printer, inflation device, cake dropping device, material handling machine, guide strip, wool sweeping and angle inserting device |
|
| Model | YF-320 |
YF-350 |
|
Packaging speed |
20-200 packs / min |
30-200 packs / min |
|
Bag Size |
(L)100-320(W)30-160(H)5-70MM |
(L)130-400(W)50-160(H)3-70MM |
|
Packaging film width |
80-320MM |
80-350MM |
|
Packaging |
OPP, CPP, Pt / TE, Kop / CPP, etc |
OPP, CPP, Pt / TE, Kop / CPP, etc |
|
Overall dimension |
(L)4000 × (W)950 × (H)1600m |
(L)4000 × (W)950 × (H)1600mm |
|
heating power |
3.5KW |
3.5KW |
|
Motor power |
0.55+0.75KW |
0.55+0.75KW |
|
Total power |
4.8KW |
4.8KW |
|
Machine weight |
650KG |
630KG |
|
Optional configuration |
Code printer, inflation device, cake dropping device, material handling machine, guide strip, wool sweeping and angle inserting device |
|
| Model | YF-400 |
YF-420 |
|
Packaging film width |
90-400mm |
90-420mm |
|
Packaging film thickness |
30-70um |
30-70um |
|
Roll film size |
Outer diameter ≤ 300mm, inner diameter ≤ 75mm |
Outer diameter ≤ 300mm, inner diameter ≤ 75mm |
|
Bag Size |
L(130-350) × W(30-160) × H(5-80)mm |
L(130-350) × W(30-160) × H(5-80)mm |
|
Speed |
40-120 packs / min |
40-120 packs / min |
|
Power requirements |
220,50HZ, 5.5KW |
220,50HZ, 5.5KW |
|
Overall dimension |
(L)4100 × (W)950 × (H)1700mm |
(L)4100 × (W)950 × (H)1700mm |
|
Packaging |
OPP, CPP, Pt / TE, Kop / CPP, etc |
OPP, CPP, Pt / TE, Kop / CPP, etc |
|
Machine weight |
650KG |
680KG |
|
Optional configuration |
Code printer, inflation device, cake dropping device, material handling machine, guide strip, wool sweeping and angle inserting device |
|
| Model | YF-450 | |
|
Packaging film width |
90-450mm |
|
|
Packaging film thickness |
30-70um |
|
|
Roll film size |
Outer diameter ≤ 300mm, inner diameter ≤ 75mm |
|
|
Bag Size |
L(160-400) × W(30-180) × H(5-80)mm |
|
|
Speed |
40-120 packs / min |
|
|
Power requirements |
220,50HZ, 5.5KW |
|
|
Overall dimension |
(L)5000× (W)950 × (H)1700mm |
|
|
Packaging |
OPP, CPP, Pt / TE, Kop / CPP, etc |
|
|
Machine weight |
700KG | |
|
Optional configuration |
Code printer, inflation device, cake dropping device, material handling machine, guide strip, wool sweeping and angle inserting device |
|
| Model | YF-500 | ||
|
Center distance |
Center distance114 |
Center distance150 |
|
|
Maximum membrane width |
500mm | ||
|
Product speed |
25-150 packs / min |
||
|
Maximum product specification |
L | 100-400mm | 100-750mm |
| W | 240mm | 240mm | |
| H | 55mm | 80mm | |
|
Overall dimension |
(L)4200×(W)1005×(H)1470mm |
||
|
Packaging |
OPP、CPP、PT/TE、KOP/CPP etc. |
||
|
Machine weight / power |
850KG/6KW |
||
|
Optional configuration |
Code printer, inflation device, cake dropping device, material handling machine, guide strip, wool sweeping and angle inserting device |
||
| Model | YF-600 |
|
Maximum membrane width |
600mm |
|
Product length |
150-750mm |
|
Maximum width |
240mm |
|
Product height |
30-80mm |
|
Speed |
40-120 |
|
power |
6KW |
|
Overall dimension |
(L)4200×(W)800×(H)1600mm |
|
Packaging |
OPP、CPP、PT/TE、KOP/CPP etc. |
|
Machine weight |
450KG |
|
Optional configuration |
Code printer, inflation device, cake dropping device, material handling machine, guide strip, wool sweeping and angle inserting device |
Packaging style
Meet a variety of packaging styles to give you a better packaging scheme
