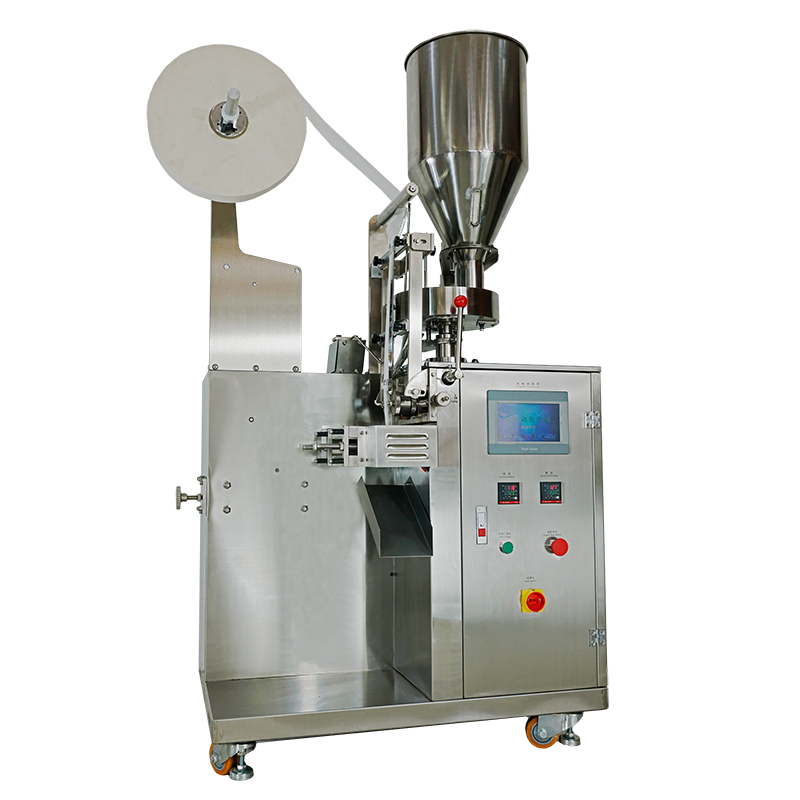

Triangle bag packing machine

Yp-60ek triangle bag packing machine

1. It is applicable to the metering and packaging of granular articles in food, medicine, chemical industry and cosmetics industry.
2. It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and print batch number according to customer requirements.
3. Touch screen operation, PLC control, driving stepper motor to control bag length, stable performance, convenient adjustment and accurate detection value. Intelligent temperature controller with PID adjustment can control the error range of temperature within 1 ℃.
4. Packaging materials: Polypropylene / polyethylene, aluminum foil / polyethylene, polyester / aluminized / polyethylene, nylon / reinforced polyethylene, paper / polyethylene, etc.
Sealing method: three-dimensional sealing

Technical parameter
Measurement range: 1 - 100 g (3 - 100 ml)
Bag making size: length (L): 30 - 170 mm; width (W): 30 - 100 mm
Packing speed: 30 - 60 bags / min
Overall dimension: (L * w * h): 900 * 1100 * 1590 mm
Overall weight: 400 kg
Total power: 220V / 50Hz / 1.4kw
