Ultrasonic non-woven packaging machine

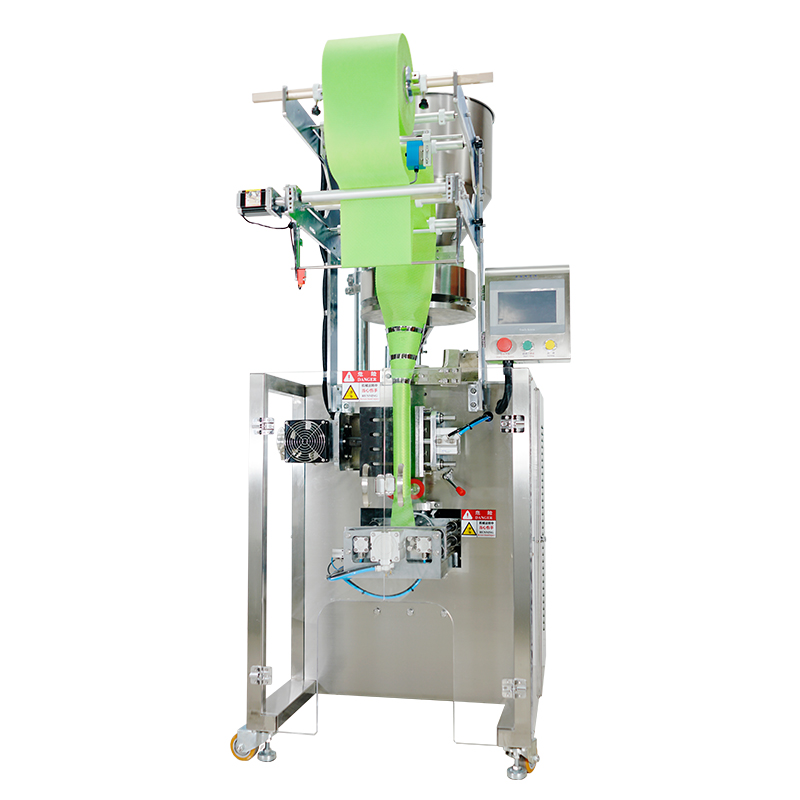

Yp-62 ultrasonic non-woven packaging machine
Characteristic
1. It is applicable to the metering and packaging of particles, powders and sauces in food, medicine, chemical industry and cosmetics industries.
2. It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and print batch number according to customer requirements.
3. Touch screen operation, PLC control, driving stepper motor to control bag length, stable performance, convenient adjustment and accurate detection value. Intelligent temperature controller with PID adjustment can control the error range of temperature within 1 ℃.
4. Packaging materials: Polypropylene / polyethylene, aluminum foil / polyethylene, polyester / aluminized / polyethylene, nylon / reinforced polyethylene, paper / polyethylene, etc.
Sealing method: three side sealing and back sealing
Characteristic
1. It is applicable to the metering and packaging of particles, powders and sauces in food, medicine, chemical industry and cosmetics industries.
2. It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and print batch number according to customer requirements.
3. Touch screen operation, PLC control, driving stepper motor to control bag length, stable performance, convenient adjustment and accurate detection value. Intelligent temperature controller with PID adjustment can control the error range of temperature within 1 ℃.
4. Packaging materials: Polypropylene / polyethylene, aluminum foil / polyethylene, polyester / aluminized / polyethylene, nylon / reinforced polyethylene, paper / polyethylene, etc.
Sealing method: three side sealing and back sealing
Technical parameter
Wetering range: 1 - 100 g
Bag making size: length (L): 30 - 170 mm
Width (W): 30 - 130 mm
Packing speed: 10 - 60 bags / min
Overall dimension (L * w * h): 850 * 1100 * 1900 mm
Overall weight: 400 kg
Total power: 220V / 50Hz / 1.4kw
Air source: ≥ 0.6m ³/ min
