Conveyor bucket automatic packaging machine

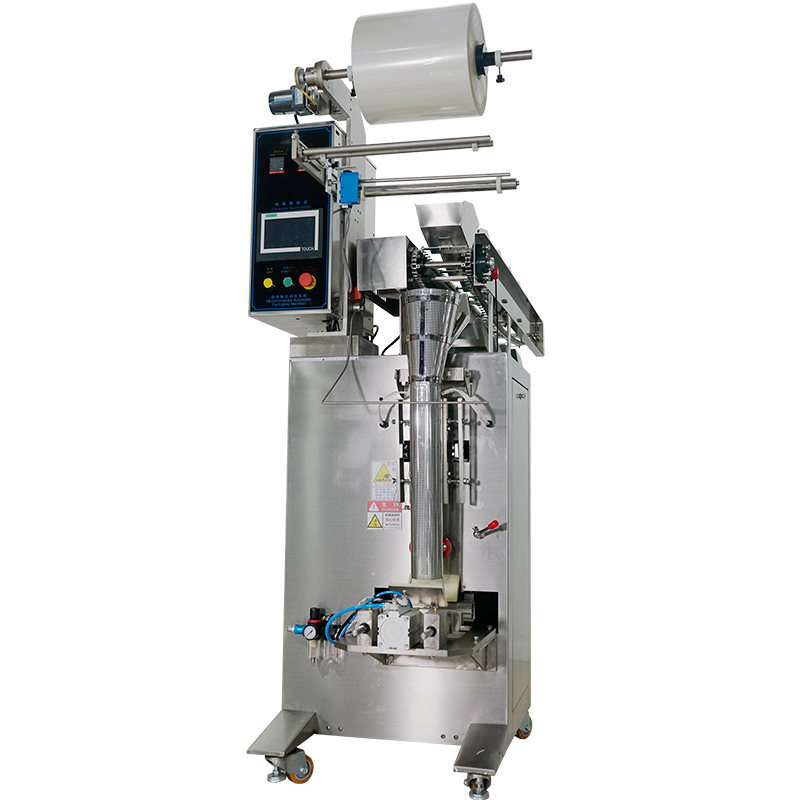

Yp-80 conveyor bucket packing machine
Characteristic
1. It is suitable for manual measurement and packaging of irregular materials.
2. It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and print batch number according to customer requirements.
3. Touch screen operation, PLC control, driving stepper motor to control bag length, stable performance, convenient adjustment and accurate detection value. Intelligent temperature controller with PID adjustment can control the error range of temperature within 1 ℃.
4. Packaging materials: Polypropylene / polyethylene, aluminum foil / polyethylene, polyester / aluminized / polyethylene, nylon / reinforced polyethylene, paper / polyethylene, etc.
Sealing method: back sealing
Technical parameter
Metering range: 20 - 1000ml
Bag making size: l: 40 - 250 mm W: 40 - 200 mm
Packing speed: 10 - 20bags / min
Overall dimension (L * w * h): 960 * 720 * 2100mm
Overall weight: 650 kg
Total power: 220V / 50Hz / 1.5kw
Air source: ≥ 0.4m ³/ min
Optional equipment
Code printer
