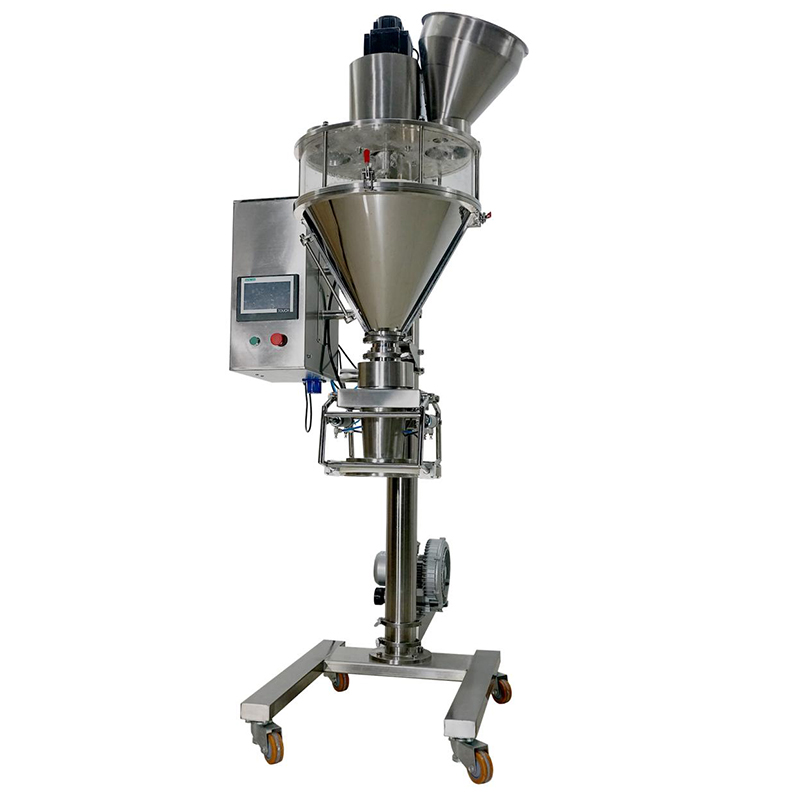

Quantitative powder packaging machine

Quantitative powder packaging machine

Characteristic
1. Adopt closed bag gripper and vacuum cleaner to minimize dust.
2. Touch screen operation, PLC control, servo motor control blanking, stable performance, convenient adjustment and accurate detection value.
3. Transparent silo, the operation status of materials is clear at a glance. At the same time, the material level detection switch can be installed not only in the silo, but also outside to prevent material level switch failure.
4. There are two measurement methods (volume measurement and weight measurement), which can be changed at any time: spiral blanking and electronic scale weighing can be used for feedback (for small specifications); spiral blanking can also be used, electronic scale can be used for direct weighing, weighing while blanking, and the packaging accuracy of 1000g can reach 1g (suitable for large packaging).

Technical parameter
Metering range: 1 - 15 kg
Packing speed: 5 - 15 bags / min
Overall dimension (L * w * h): 710 * 810 * 1900mm
Overall weight: 180 kg
Total power: AC220V / 1.8kw
Packing accuracy: + - 1.5%
Silo capacity: 55L
Feeding port height: 1550mm
