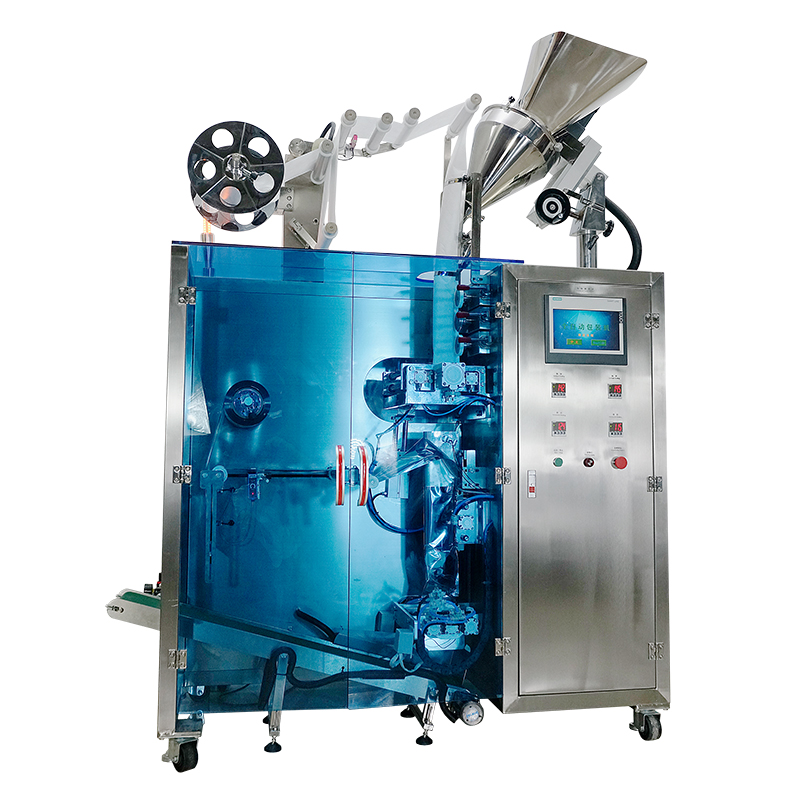

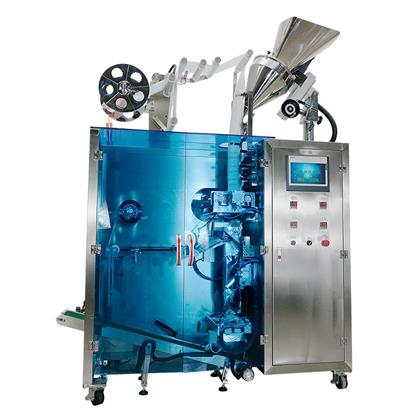

Powder inner and outer bag packaging machine

Powder inner and outer bag packaging machine
characteristic
1. Suitable for coffee powder and small granular materials.
2. With a specific ear hanging filter screen, three side sealing and hanging directly on the edge of the cup, the coffee brewing effect is better and the bag shape is beautiful. At present, it is very popular in the foreign market.
3. The machine has the functions of automatic bag making, metering, filling, sealing, cutting, counting, printing batch number and so on.
4. The inner bag is a non-woven ear bag, which is convenient and hygienic for brewing. The sealing adopts advanced ultrasonic sealing, with good sealing effect and beautiful bag shape.
5. Packaging materials: composite film, nylon, corn fiber, ear hanging coffee film.

Sealing method: three side sealing


Technical parameter
Measurement range: 5 - 10 g (15 - 33 ml)
Inner pocket size: l: 70 - 74 mm W: 90 mm
Outer bag size: length (L): 120 mm width (W): 100 mm
Packing speed: 20-35 bags / min
Overall dimension (L * w * h): 1720 * 900 * 2270 mm
Overall weight: 660 kg
Total power: AC220V / 50Hz / 3.7KW
Air source: ≥ 0.6m ³/ min
Optional equipment
Code printer
