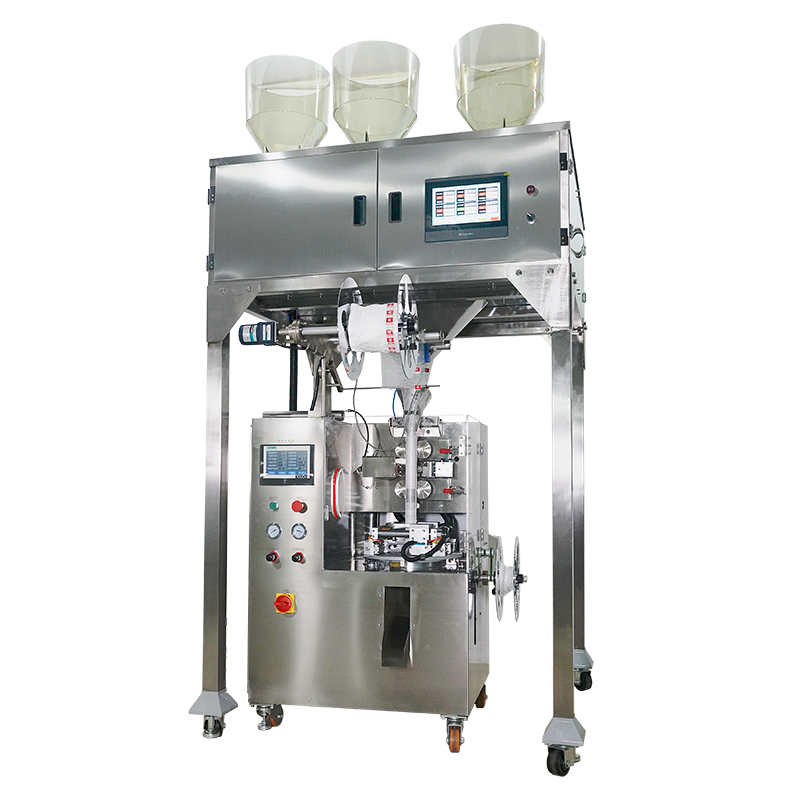

Nylon triangle bag packaging machine (Electronic Scale Series)

Nylon triangle bag packaging machine (Electronic Scale Series) ys-sjb02-06 nylon triangle bag packaging machine (Electronic Scale Series)
Characteristic
1. Suitable for green tea, black tea, flower tea, coffee, Chinese tea, health tea, traditional Chinese medicine tea, granules, etc.
2. It can be used for plane bag packaging, triangular three-dimensional packaging and other forms of packaging bags.
3. The whole machine can automatically complete the functions of feeding, metering, bag making, sealing, cutting, counting, finished product conveying and so on.
4. Imported ultrasonic sealing and electronic scale metering blanking method are selected, with firm sealing and accurate blanking value.
5. Packaging materials: nylon, pet, non-woven fabric, corn fiber.

Sealing method: three-dimensional sealing

Technical parameter
Metering range: 1 - 7 g
Bag making size: l: 60 - 80mm, W: 40 - 80mm
Packing speed: 40 bags / min
Overall dimension (L * w * h): 1310 * 1470 * 2110 mm
Overall weight: 450 kg
Total power: AC220V / 50Hz / 3.0kw
Air source: ≥ 0.6m ³/ min
