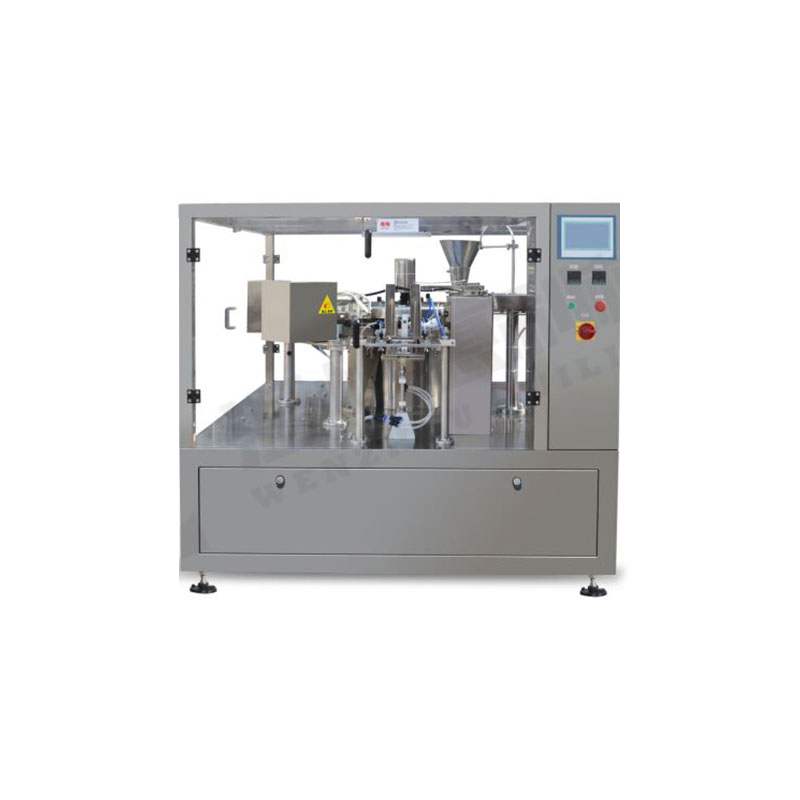

YF6-8-200 bag feeder
Product features
1. It can automatically complete all production processes such as feeding, automatic bag taking, coding, bag opening, quantitative filling, heat sealing, finished product output and so on.
2. The intelligent combined scale adopts advanced PLC and pod (touch screen) operation interface, which has the advantages of convenient operation, high precision, fast speed and stable performance.
3. Automatic detection function: if the bag is not opened or incomplete, the bag can be reused without feeding and heat sealing, which can avoid waste and save production cost for users. 4. The bag width is controlled by motor. Press and hold the control button to adjust the width of each group of machine clips, which is convenient to operate and save time.
5. Safety device: when the working air pressure is abnormal or the heating pipe fails, it will give an alarm.
6. It meets the unsanitary standards of food processing machinery. The contact between the machine and materials or packaging bags is processed with stainless steel or other materials that meet the food hygiene requirements. It can meet the food hygiene and safety standards and require the packaging of corrosion-resistant chemical products.
7. It has a wide range of packaging. By selecting different meters, it can be suitable for the packaging of materials such as liquids, particles, sauces, powders, irregular blocks and so on.
Material metering and filling machine, working platform, weight sorting scale, material elevator,
finished product conveying elevator, metal detector
Granules: crystalline monosodium glutamate, granular drugs, capsules, seeds, chemical raw materials, granulated sugar,
chicken essence, melon seeds Nuts, pesticides, fertilizers, feed, etc
Powder: condiments, monosodium glutamate, milk powder, glucose, washing powder, chemical raw materials, fine sugar,
pesticides,Fertilizer, etc.
Liquid / sauce: detergent, yellow rice wine, soy sauce, rice vinegar, fruit juice, beverage, ketchup, peanut butter,
fruit juice,Sauce, chili sauce, bean paste and other baggable materials
Material metering and filling machine, working platform, weight sorting scale, material elevator,
finished product conveying elevator, metal detector
Eight stations: 1. Bag loading 2. Printing production date 3. Bag opening 4. Blanking 5. Blanking
6. Poking or vibration7. Heat sealing 8, shaping and output.
Model
HL6/8-200
Bag type
Self standing bag, handbag, zipper bag, four side sealed bag, three side sealed bag, paper bag and other composite bags
Bag size
W:80~200mm L:80-300mm
Filling range
10-1500g
Packaging speed
50-60 packs / minute (the speed is determined by the product itself and the filling weight)
Packaging accuracy
Average accuracy ≤ ± 1%
Total power
2.5Kw
Scope of application
Pastries, daily necessities, puffed food, etc.
Main optional configuration
Workflow
