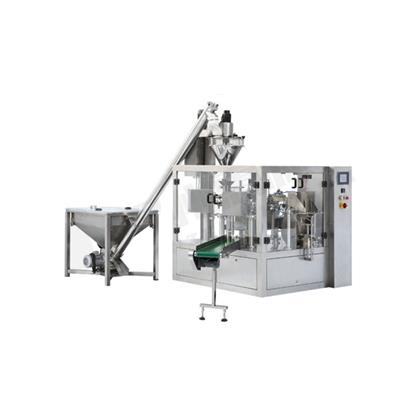

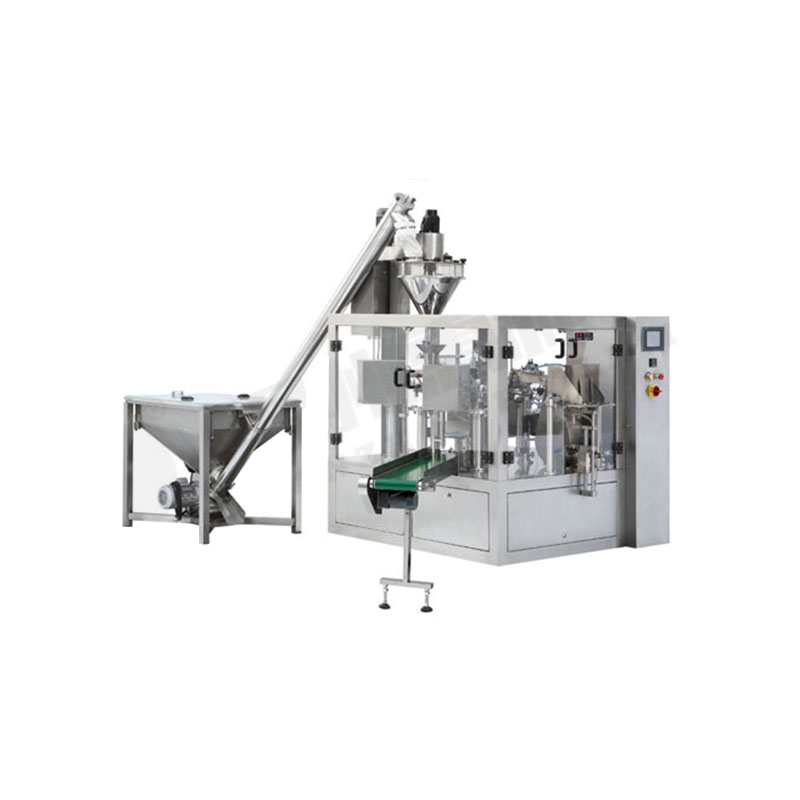

200FJ powder bag feeder
Product features
1. The packaging machine implements self-automatic detection, information feedback and other functions. In the production and operation, if there is no packaging bag or the packaging bag is not opened, the detection device controls no filling, no sealing, real-time display of operation status and automatic shutdown. Saving packaging materials and raw materials can reduce the pollution of packaging site environment and raw materials.
2. Screw metering device: powder screw filling device is an independent metering and filling system. The device is driven by high-precision stepping motor and filled with screw. In the measuring range of the machine, several screws of different sizes can complete different measuring ranges. The operation is simple, convenient and accurate.
3. Screw feeder: the filling motor moves the screw, which has the advantages of accurate positioning value, high precision, fast speed, large torque, long service life, settable speed and good stability. Replacing the screw accessories can adapt to a variety of materials from ultra-fine powder to large particles.
4. Quick change of packing bag specification: the easy and fast debugging of manipulator device overcomes the disadvantage of weight change due to the change of material specific gravity.
5. Frequency conversion speed regulation, the machine uses frequency conversion speed regulation device, the packaging weight can be adjusted steplessly at any time, the working state can be changed arbitrarily at any time, and the operation is convenient.
6. The packaging machine can make a variety of bag types, such as three-dimensional bag, plane bag, handbag, zipper bag, four side sealed bag, three side sealed bag, paper bag, M-shaped bag and other prefabricated bags made of composite bag film.
7. Horizontal bag delivery mode: more bags can be stored for bag storage products, with low requirements for bag quality and high bag separation and loading rate.
8. The dust shall not leak out, and the outlet suction and dust collection device shall be filled to protect the workshop environment.
9. Finished product conveying: stable operation, anti-interference, high weighing accuracy, convenient and intuitive operation.
| Model |
HL8-200F |
|
Bag type |
Self standing bag, handbag, zipper bag, four side sealed bag, three side sealed bag, paper bag and other composite bags |
|
Bag size |
W:80~250mm L:80-300mm |
|
Filling range |
10-1500g |
|
Packaging speed |
45-60 packs / minute (the speed is determined by the product itself and the filling weight) |
|
Packaging accuracy |
Average accuracy ≤± 1% |
|
Total power |
4kw |
|
Scope of application |
It is suitable for powder materials and high-capacity powder packaging in food, medicine and chemical industries. Such as flour, soybean flour, milk powder, pollen, additives and other powdery materials. |
|
Metering supporting equipment |
Powder blanking system |
|
Workflow |
Eight stations: 1. Bag loading 2. Printing production date 3. Bag opening 4. Blanking 5. Blanking 6. Stabbing or vibrating 7. Heat sealing 8. Shaping and output |
