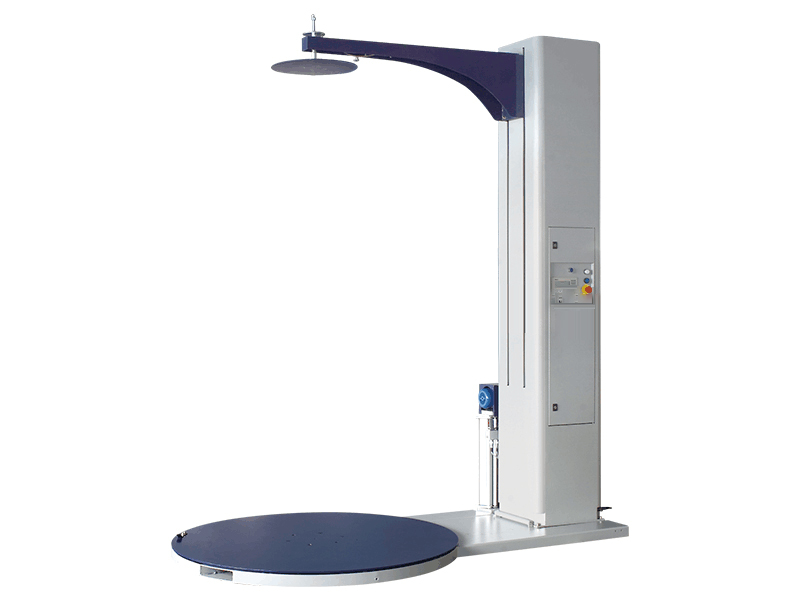

Stretching film winding machine with capping mechanism
Model: mh-fg-2000c3
Charging power supply: 1p AC 220V, 50 Hz
Rotary table speed: 0 ~ 10 rpm
Rotary table diameter: 1500mm (1650 / 1800 / 2000 / 2200)
Pressing plate diameter: 450mm (600 / 800 can be selected)
Column height: 2400mm (optional 2000 / 2700 / 3000 / 3200 / 3400)
Bearing capacity: 2000kg
Effective height: column height minus 400mm
Packaging material: LLDPE tensile film with width ≤ 500mm and outer diameter ≤ 280mm
Jacking stroke: 500mm ~ column height 400mm
