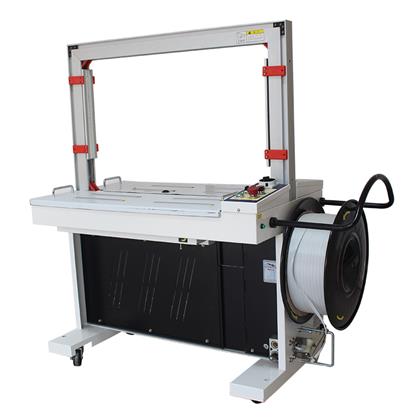

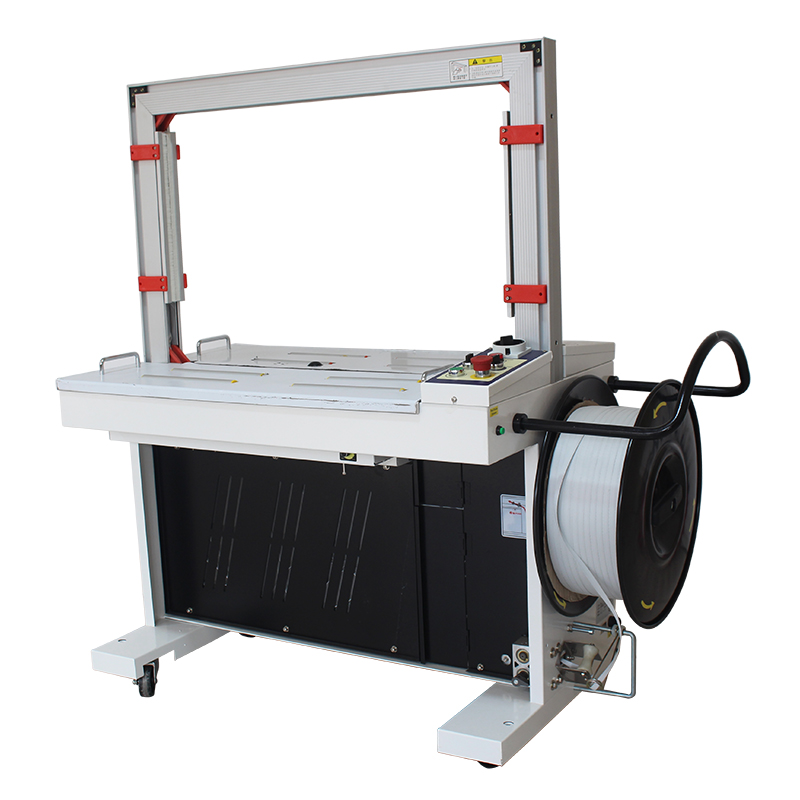

MH-401Automatic binding machine
Mh-401 automatic packer
Power supply: 220V / 50Hz / 500W
Packing speed: ≤ 1.5 seconds / Lane
Height of worktable: 760mm (including casters)
Bearing capacity of panel: 35kg
Binding force: 5 ~ 60kg adjustable
Frame size: width 850 * height 600mm; customized as required
Strapping mode: manual strapping, with options of inching, foot switch, continuous beating, etc
Hot bonding method: bottom bonding
Machine table: no power, manual pushing
Applicable tape: width 9-13.5 * thickness 0.45 ~ 0.8mm, optional
Electrical configuration: controlled by single chip microcomputer, 3 "sodron" or "P + F" motors are selected as proximity switches
Adopt "Meiwa" DC motor, etc
Machine size: 600mm long, 1420mm wide and 1490mm high in the direction of the assembly line
