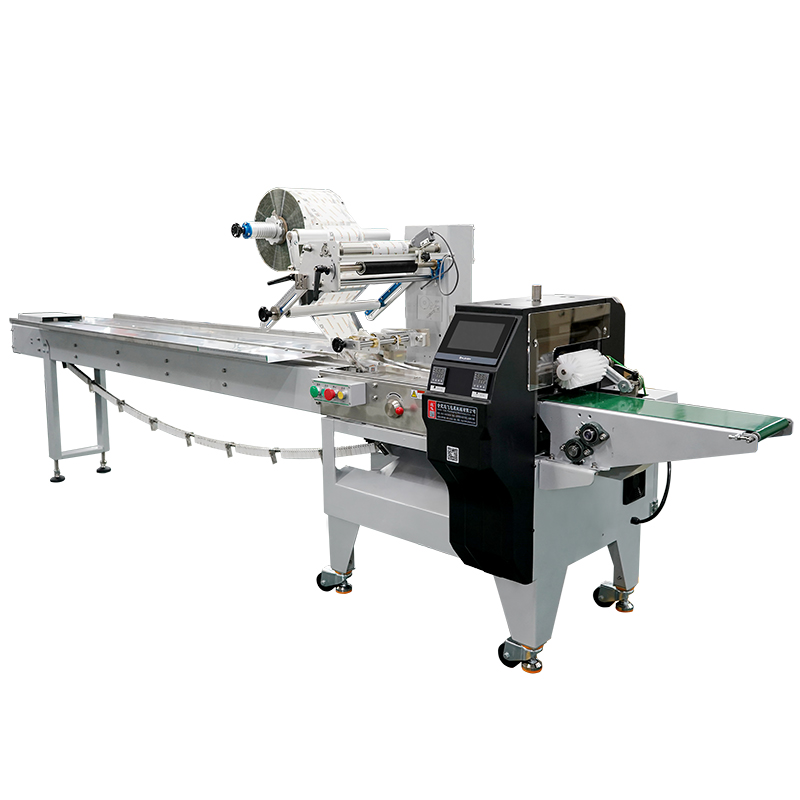

180 automatic pillow packing machine
| Model |
SZ180three temperature control single knife |
SZ180three temperature control double knife |
SZ180 three temperature control three knives |
|
Packaging speed (pack/min) |
30-150 | 30-300 |
30-500 |
|
Packaging film width (mm) |
90-400 | 90-400 | 90-400 |
|
Bag size (mm) length (flat bag) |
120-500 | 60-350 | 45-100 |
|
Wide |
35-160 | 35-160 | 35-60 |
|
High |
5-60 | 5-60 | 5-30 |
|
Total power (kw) Three temperature control |
5 | 6.5 | 5.8 |
|
Main motor power (kw) |
1.55 | 1.55 | 1.55 |
|
Heating power (kw) |
3.3 | 4.7 | 4 |
|
Net weight of machine (kg) |
400 | 400 | 400 |
|
Overall dimension of machine (length) × wide × Height (mm) |
1730*930*1370 | ||
| 1730*930*1700 | |||
| 4000*930*1370 | |||
|
Power type |
220V 50Hz | ||
|
Packaging film material |
PE PVC PS EVA PET PVOC*PVC | ||
|
Overall dimension (including tailstock) |
Overall dimension (including tailstock) |
||
|
*Note: the default setting of the three temperature control is the center distance of 132, and the center distance of the bag is less than 105mm |
|||
