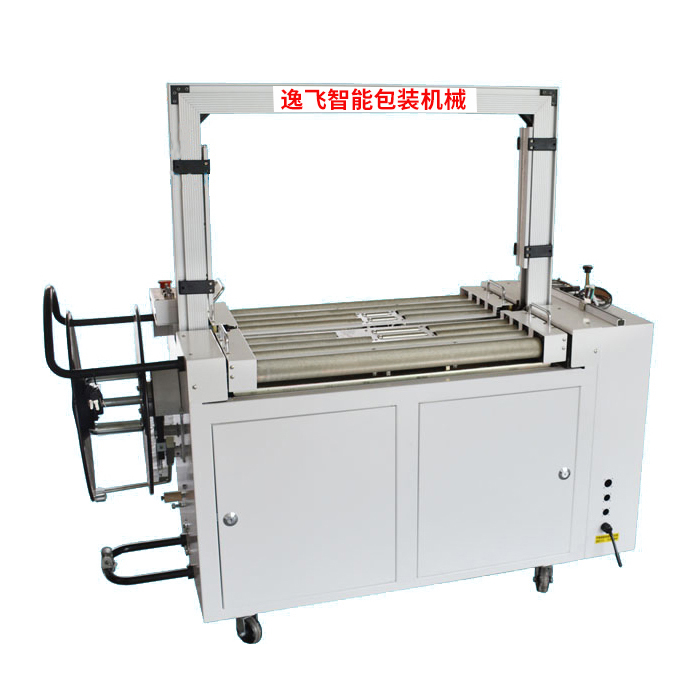

MH-102A/MH-X202A/MH-302A Automatic unmanned strapping machine
Model:MH-102A
Power Supply:380V 50/60Hz 1.4kW
Binding speed:≤ 2.5 seconds / Channel
Binding force:0-60kg
Height of worktable:750mm (can be customized as required)
Strapping belt specification mm;Width 9-15 (± 1), thickness 0.55-1.0 (± 0.1)
Minimum package size：210mm wide × 80mm high
Standard frame size：Width 800mm × 600mm high (customizable)
Overall dimension mm：L1580×W650×H1418
Power Supply:380V 50/60Hz 1.4kW
Binding speed:≤ 2.5 seconds / Channel
Binding force:0-60kg
Height of worktable:750mm (can be customized as required)
Strapping belt specification mm;Width 9-15 (± 1), thickness 0.55-1.0 (± 0.1)
Minimum package size：210mm wide × 80mm high
Standard frame size：Width 800mm × 600mm high (customizable)
Overall dimension mm：L1580×W650×H1418
Model:MH-X202A
Power Supply:380V 50/60Hz 0.8kW
Binding speed:≤ 2.5 seconds / Channel
Binding force:0-50kg
Height of worktable:750mm (can be customized as required)
Strapping belt specification mm：Width 9-15 (± 1), thickness 0.55-1.0 (± 0.1)
Minimum package size：210mm wide × 80mm high
Standard frame size：Width 800mm × 600mm high (customizable)
Overall dimension mm：L1440×W650×H1422
Model:MH-302A
Power Supply:380V 50/60Hz 0.9kW
Binding speed:≤ 2.0 s / Channel
Binding force:0-70kg
Height of worktable:750mm (can be customized as required)
Strapping belt specification mm：Width 9-15 (± 1), thickness 0.55-1.0 (± 0.1)
Minimum package size：210mm wide × 80mm high
Standard frame size：Width 800mm × 600mm high (customizable)
Overall dimension mm：L1440×W650×H1422
