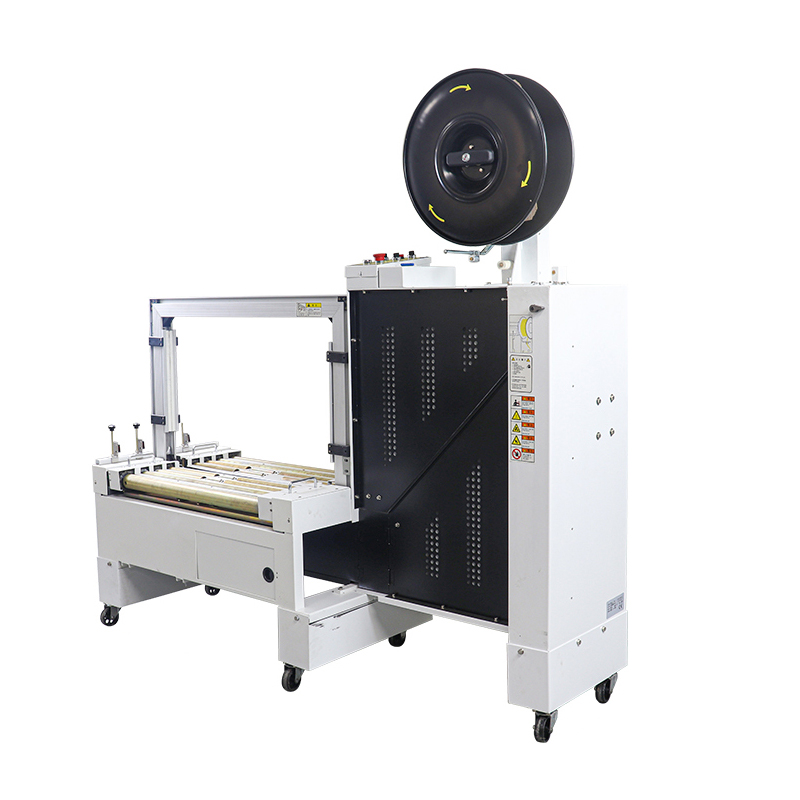

MH-102B/X202B/302BAutomatic unmanned strapping machine

Full automatic binding machine (roller table + low table)

Model:MH-102B
Power Supply:380V 50/60Hz 1.4kW
Binding speed:≤ 2.5 seconds / Channel
Binding force:0-60kg
Height of worktable:450mm (can be customized as required)
Strapping belt specification mm:Width 9-15 (± 1), thickness 0.55-1.0 (± 0.1)
Minimum package size:210mm wide × 80mm high
Standard frame size:Width 800mm × 600mm high (customizable)
Overall dimension mm:L1905×W660×H1750

Model:MH-X202B
Power Supply:380V 50/60Hz 0.8kW
Binding speed:≤ 2.5 seconds / Channel
Binding force:0-50kg
Height of worktable:450mm (can be customized as required)
Strapping belt specification mm:Width 9-15 (± 1), thickness 0.55-1.0 (± 0.1)
Minimum package size:210mm wide × 80mm high
Standard frame size:Width 800mm × 600mm high (customizable)
Overall dimension mm:L1810×W650×H1617

Model:MH-302B
Power Supply:380V 50/60Hz 0.9kW
Binding speed:≤ 2.0 seconds / Channel
Binding force:0-70kg
Height of worktable:450mm (can be customized as required)
Strapping belt specification mm:Width 9-15 (± 1), thickness 0.55-1.0 (± 0.1)
Minimum package size:210mm wide × 80mm high
Standard frame size:Width 800mm × 600mm high (customizable)
Overall dimension mm:L1810×W650×H1617
