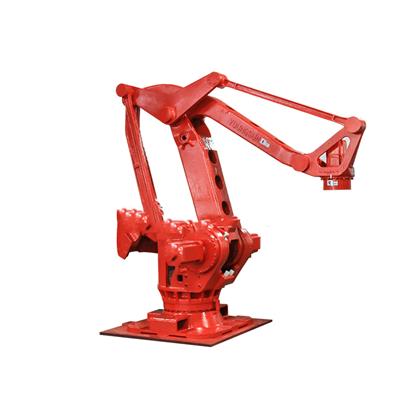

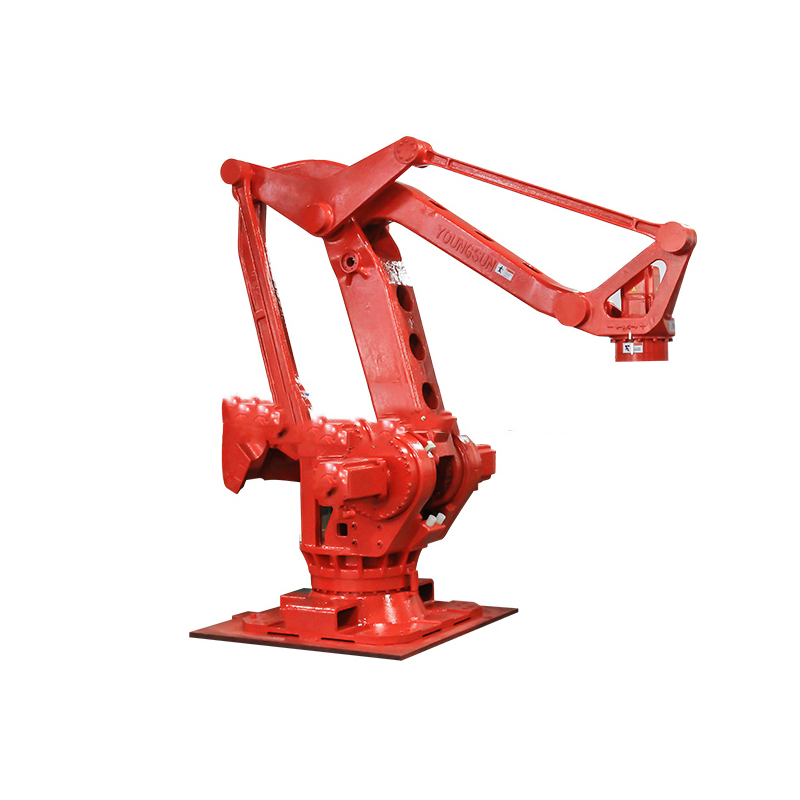

YSR-4-500-F Four axis robot
Ysr-4-500-f four axis robot
Model: ysr-4-500-f four axis robot
Rated load: 500kg
Rated power: 26.9kw
Maximum working radius: 3150mm
Installation method: floor type
Dead weight: 2210kg
Repeated positioning accuracy: ± 0.5mm
Floor area: 950mm × 950mm
Axis movement: A1 ± 180 ° A2 + 40 ° to - 90 ° A3 + 15 ° to 115 A4 ± 360 °
Maximum speed: A1 85 ° / SA280 ° / sa380 ° / sa4165 ° / S
