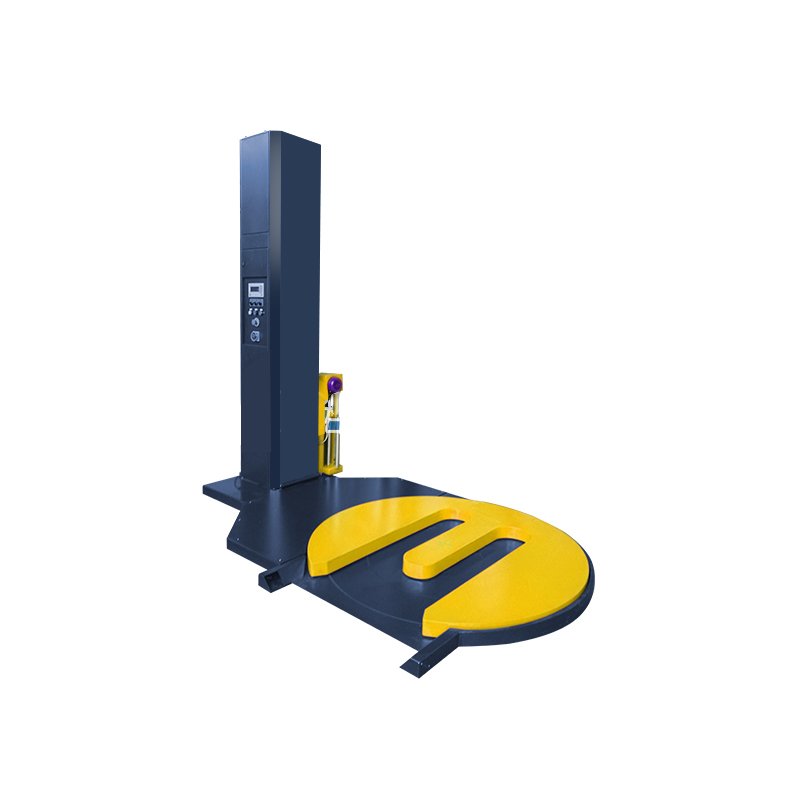

Horseshoe rotary table type stretching film winding machine
Model: mh-fg-2000w
Charging power supply: 1p AC 220V, 50 Hz
Rotary table speed: 0 ~ 10 rpm
Rotary table diameter: Φ 1500 mm (optional) Φ 1650)
Column height: 2400 mm (optional 2000 / 2700 / 3000 / 3200 / 3400)
Bearing capacity: 1000 kg
Effective height: column height minus 400mm
Packaging material: width ≤ 500 mm, outer diameter ≤ Φ 280mm LLDPE stretched film
Pressing] top stroke: 500mm ~ column height minus 400mm
