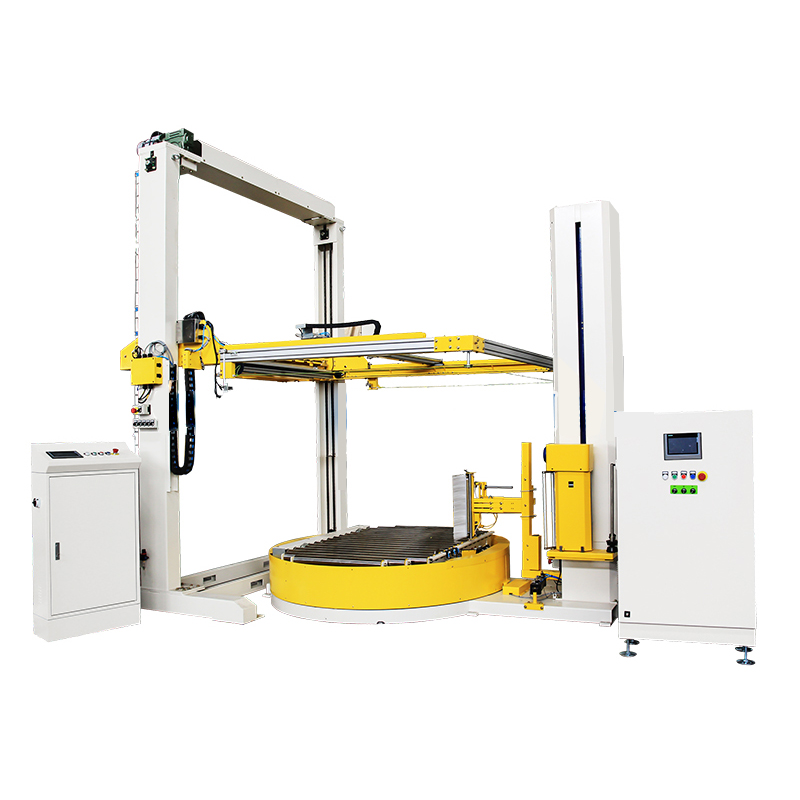

Gantry rotary arm type film covering stretching film winding machine
Model：MH-FG-2000D+MH-FG-2000RC
Power supply: 3P AC 380V, 50 Hz
Air source: 0.4 ~ 0.6MPa
Product specification: ≤ 1200 * 1200mm
Effective height: 2400 mm (2000 / 2700 / 3000 / 3200 / 3400)
Film covering material: width ≤ 1800 mm, outer diameter ≤ Φ 300mm LLDPE PE film
Noise: ≤ 75db (a)
Ambient humidity ≤ 90%, temperature - 10 ~ 40 ° C
Optional Conveyor line
