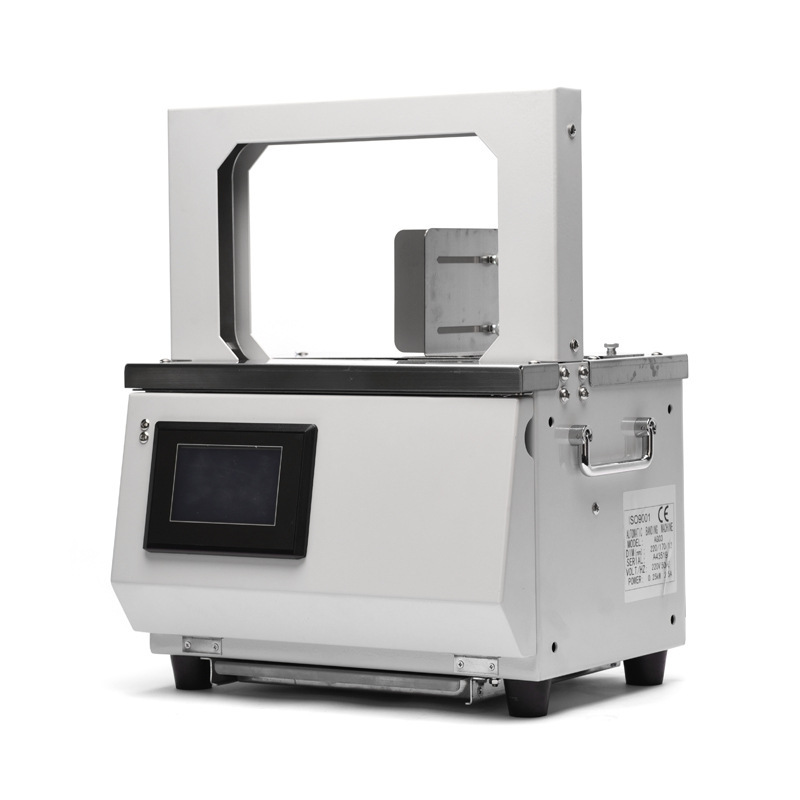

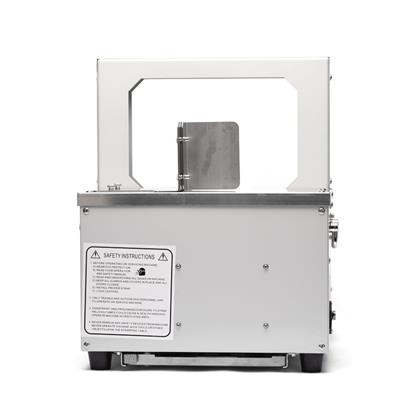

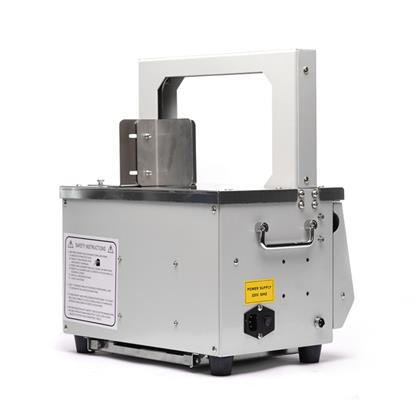

AG03 Strapping machine
Ag03 strapping machine parameters:
|
Model |
AG03-220/170/12 |
AG03-360/260/12 |
|
Power Supply |
AC110-120/200-240V,50/60HZ, Single phase electricity, 0.25KW,2.5A |
AC110-120/200-240V,50/60HZ, Single phase electricity, 0.25KW,2.5A |
|
Packing speed |
26 tracks / min |
22 tracks / min |
|
Binding force |
≤ 5kg (adjustable) |
≤ 5kg (adjustable) |
|
Pantograph size |
W220mm × H170mm (standard) |
W360mm × H260mm (standard) |
|
Height of worktable |
215mm |
215mm |
|
Strapping belt |
OPP film band |
OPP film band |
|
Bandwidth |
Standard 12mm |
Standard 12mm |
|
Tape record |
Inner diameter: 40mm
outer diameter: 160mm thickness: 0.12mm |
Inner diameter: 40mm
outer diameter: 160mm thickness: 0.12mm |
|
Minimum packed object |
30mm W |
30mm W |
|
Machine size |
L380mm×W280mm×415mm |
L520mm×W280mm×505mm |
|
Shipping dimensions |
L440mm×W340mm×550mm |
L580mm×W340mm×640mm |
|
Weight |
Gross weight 28kgs Net weight 18kgs |
Gross weight 22kgs Net weight 35kgs |
